On Grid/ Hybrid/Off Grid Home Energy Storage For Solar PV System
solar PV system for home use
on grid solar system
off grid solar system
hybrid solar system
Ten years warranty
pls contact us to get more details!
Description
residential solar PV power system for home use
on grid solar system parameter
|
Components |
30KW | 50KW | 100KW |
|
550W Mono Solar Panel |
55 Pieces | 91 Pieces | 182 Pieces |
|
On Grid Inverter |
30KW | 50KW |
100KW |
|
DC Combiner Box |
1 Piece | 1 Piece |
1 Piece |
|
PV Cable 4MM2 |
600 Meter | 1000 Meter |
2000 Meter |
|
Mounting Brackets |
1 Set | 1 Set |
1 Set |
|
MC4 Connector |
60 Pieces | 70 Pieces |
100 Pieces |
|
Installation Tool |
1 Set | 1 Set |
1 Set |
| Kindly Reminder |
The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions and Requirements. |
||
hybrid solar system parameter

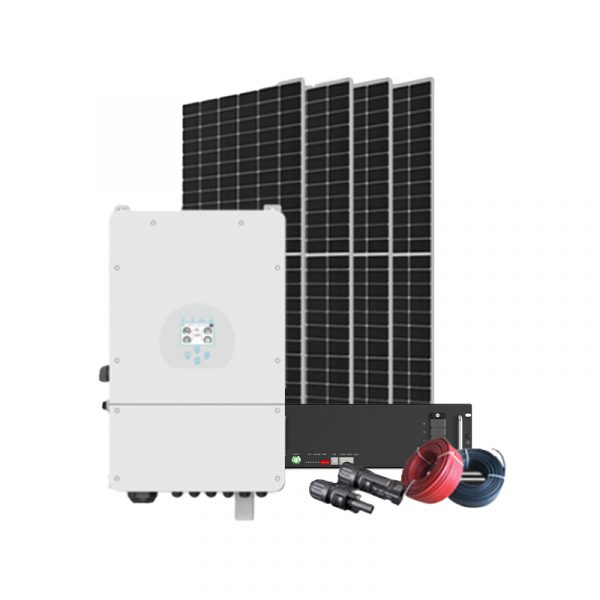

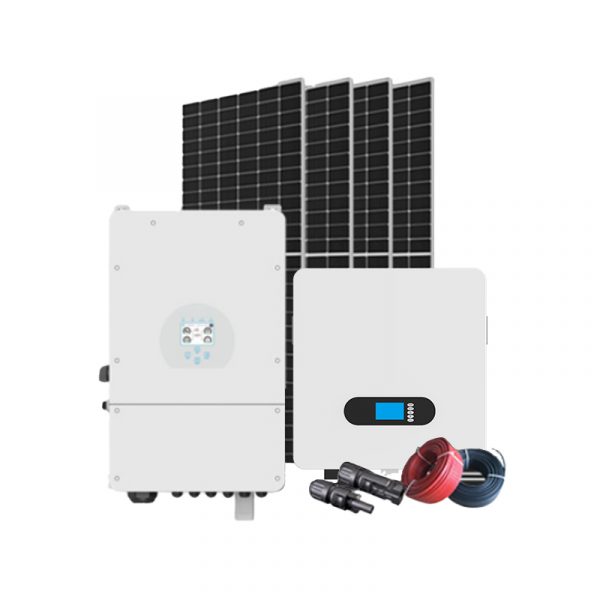

Hybrid Solar System with LV Battery Solution |
|||||||
5/6KW Hybrid Solar Power System |
8KW Hybrid Solar Power System |
||||||
|
Item |
Model | Description | Quantity | Item | Model | Description | Quantity |
|
1 |
Solar Panel | 410W | 16 pc | 1 | Solar Panel | 410W |
22 pc |
|
2 |
Hybrid Inverter | 5/6KW, 230V/50Hz | 1 pc | 2 | Hybrid Inverter | 8KW, 380V/50Hz |
1 pc |
|
3 |
Lithium Battery | LV 5KWH or Others | 1 Set | 3 | Lithium Battery | LV 10KWH or Others |
1 Set |
|
4 |
Cable | 4mm2 | 200 meter | 4 | Cable | 4mm2 |
200 meter |
|
5 |
Connector | MC4 Connectors | 8 Pairs | 5 | Connector | MC4 Connectors |
10 Pairs |
|
6 |
Mounting Support | Ground/Roof Mounted | 1 Set | 6 | Mounting Support | Ground/Roof Mounted |
1 Set |
10KW Hybrid Solar Power System |
12KW Hybrid Solar Power System |
||||||
|
Item |
Model | Description | Quantity | Item | Model | Description |
Quantity |
|
1 |
Solar Panel | 410W | 26 pc | 1 | Solar Panel | 410W |
30 pc |
|
2 |
Hybrid Inverter | 10KW, 380V/50Hz | 1 pc | 2 | Hybrid Inverter | 12KW, 380V/50Hz |
1 pc |
|
3 |
Lithium Battery | LV 10KWH or Others | 1 Set | 3 | Lithium Battery | LV 15KWH or Others |
1 Set |
|
4 |
Cable | 4mm2 | 400 meters | 4 | Cable | 4mm2 |
400 meters |
|
5 |
Connector | MC4 Connectors | 12 Pairs | 5 | Connector | MC4 Connectors |
16 Pairs |
| 6 | Mounting Support | Ground/Roof Mounted | 1 Set | 6 | Mounting Support | Ground/Roof Mounted |
1 Set |

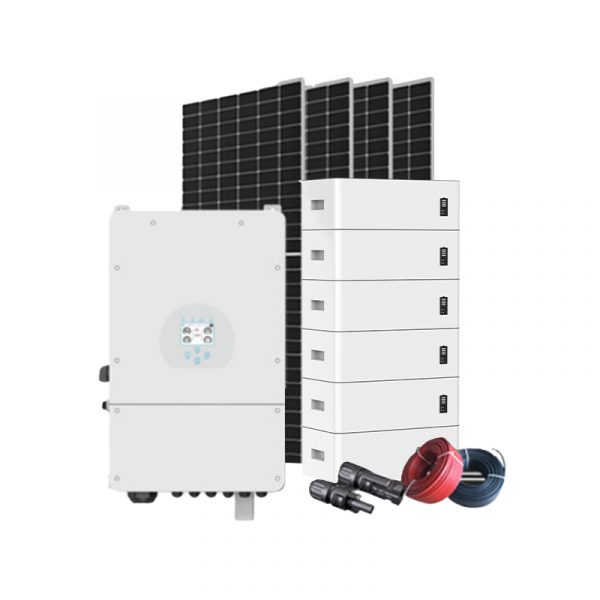

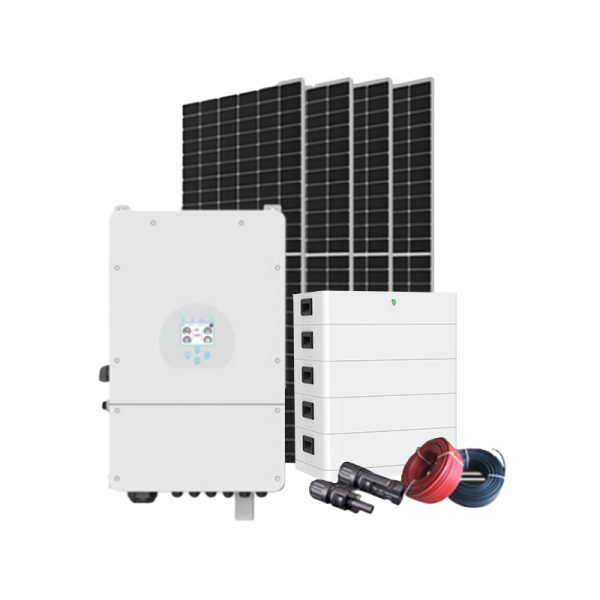

Hybrid Solar System with HV Battery Solution |
|||||||
6KW Hybrid Solar Power System |
8KW Hybrid Solar Power System |
||||||
|
Item |
Model | Description | Quantity | Item | Model | Description |
Quantity |
|
1 |
Solar Panel | 410W | 16 pc | 1 | Solar Panel | 410W |
22 pc |
|
2 |
Hybrid Inverter | 6KW, 380V/50Hz | 1 pc | 2 | Hybrid Inverter | 8KW, 380V/50Hz |
1 pc |
|
3 |
Lithium Battery | 12kWh or Others | 1 Set | 3 | Lithium Battery | 12kWh or Others |
1 Set |
|
4 |
Cable | 4mm2 | 200 meter | 4 | Cable | 4mm2 |
200 meter |
|
5 |
Connector |
MC4 Connectors | 8 Pairs | 5 | Connector | MC4 Connectors |
10 Pairs |
|
6 |
Mounting Support | Ground/Roof Mounted | 1 Set | 6 | Mounting Support | Ground/Roof Mounted |
1 Set |
10KW Hybrid Solar Power System |
12KW Hybrid Solar Power System |
||||||
|
Item |
Model | Description | Quantity | Item | Model | Description |
Quantity |
|
1 |
Solar Panel | 410W | 26 pc | 1 | Solar Panel | 410W |
30 pc |
|
2 |
Hybrid Inverter | 10KW, 380V/50Hz | 1 pc | 2 | Hybrid Inverter | 12KW, 380V/50Hz |
1 pc |
|
3 |
Lithium Battery | 12kWh or Others | 1 Set | 3 | Lithium Battery | 12kWh or Others |
1 Set |
|
4 |
Cable | 4mm2 | 200 meter | 4 | Cable | 4mm2 |
200 meter |
|
5 |
Connector | MC4 Connectors | 12 Pairs | 5 | Connector | MC4 Connectors |
16 Pairs |
|
6 |
Mounting Support | Ground/Roof Mounted | 1 Set | 6 | Mounting Support | Ground/Roof Mounted |
1 Set |
| Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions and Requirements. | |||||||
off grid solar system parameter
Components |
1KW off grid |
3KW off grid |
5KW off grid |
6KW off grid |
10KW off grid |
|
Solar Panels |
/ | / | / | / |
/ |
|
Off Grid Inverter |
1KW | 3KW | 5KW | 6KW |
10KW |
|
Lithium or Gel Battery |
/ | / | / | / |
/ |
|
DC Cable |
100 Meters | 100 Meters | 200 Meters | 200 Meters |
200 Meters |
|
MC4 Connector |
4 Pairs | 4 Pairs | 6 Pairs | 6 Pairs |
8 Pairs |
|
Mounting System |
Ground or Roof(Customized Optional) | ||||
| Kindly Reminder |
The Above System Configuration For Initial design, The System configurations are Subject to Changing Depending on Your Final Installation Conditions and Requirements. |
||||
