48V 100ah Solar Energy Storage Battery System With Lifepo4 Lithium Ion Batteries 5KWH/10KWH

Description

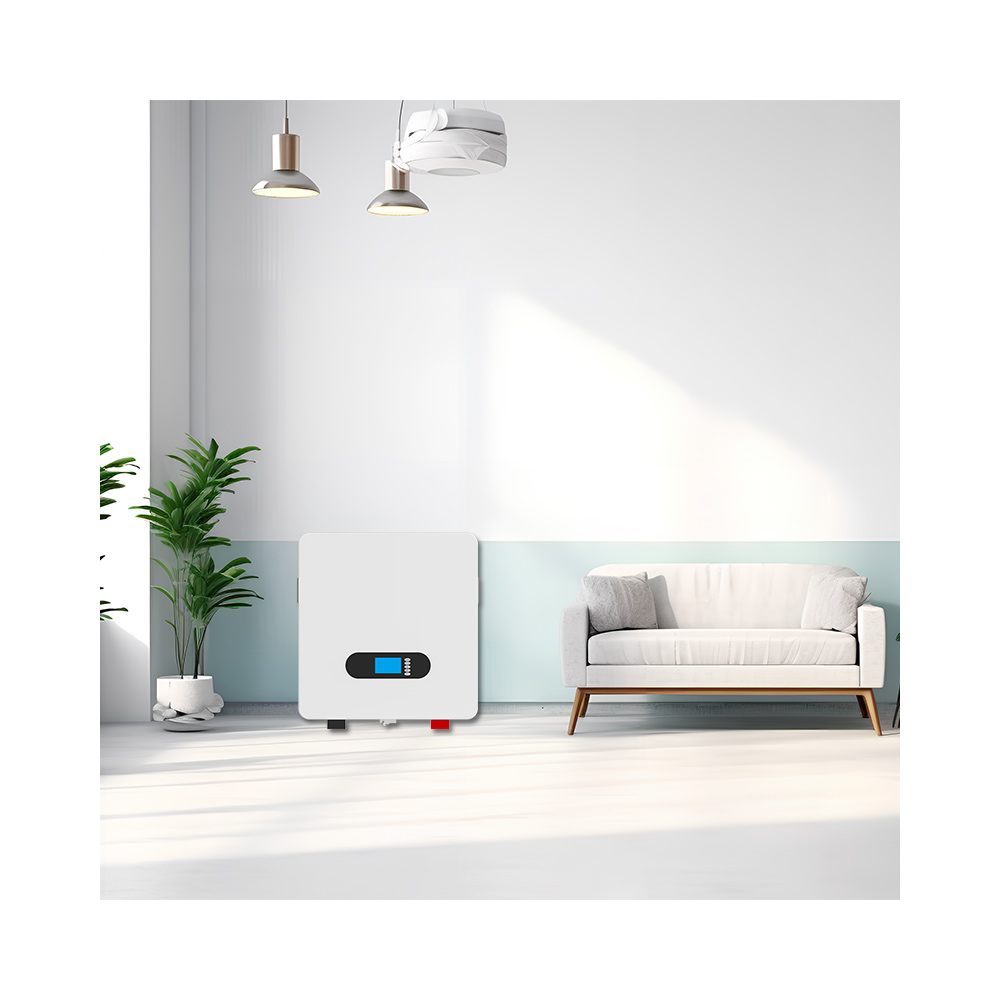

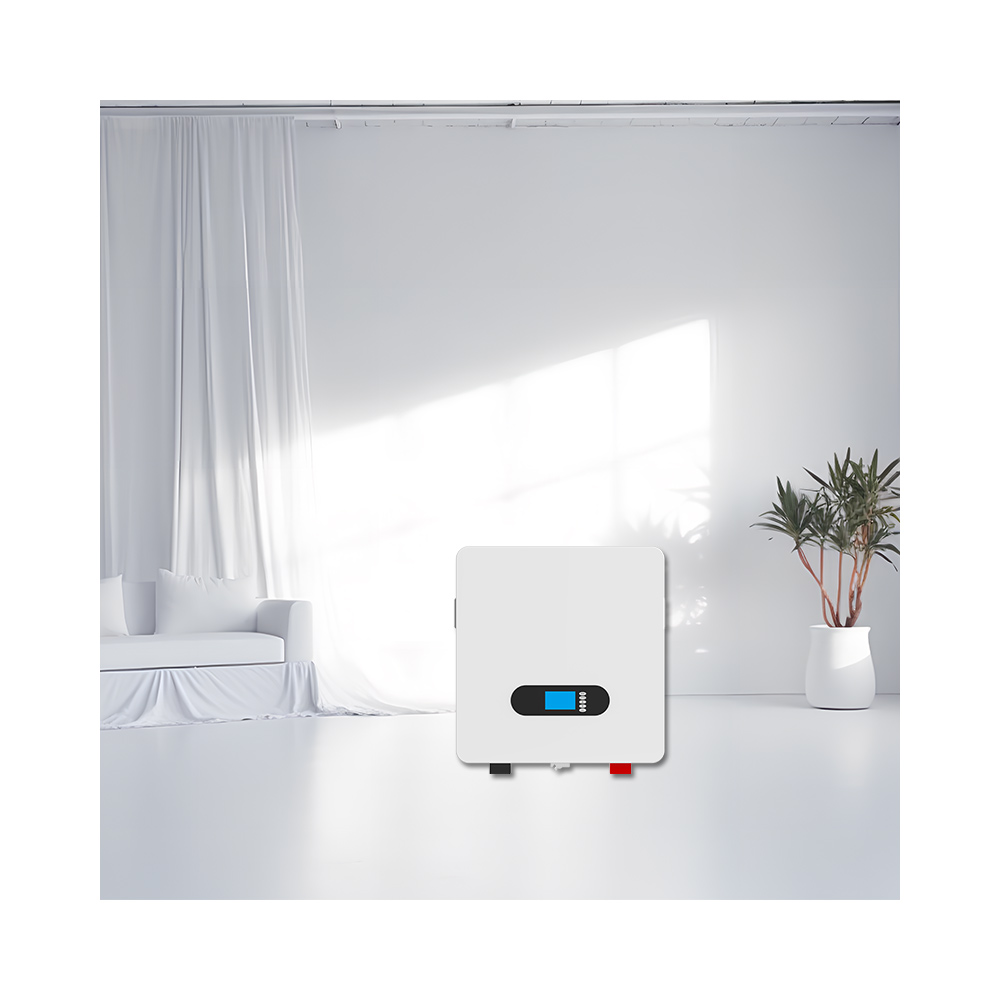

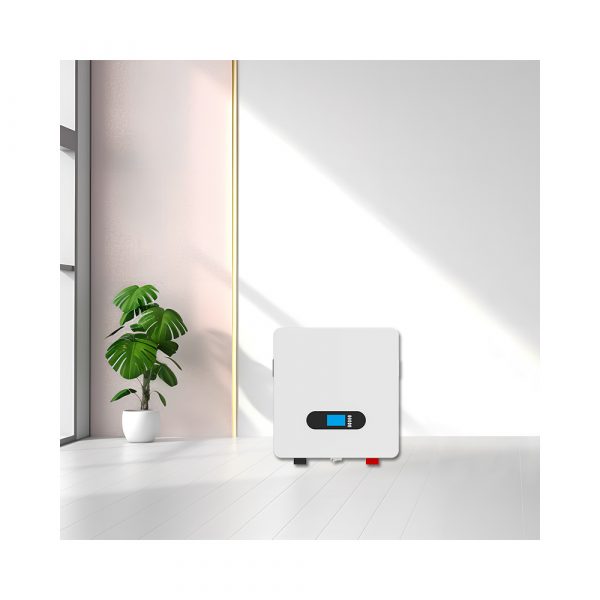

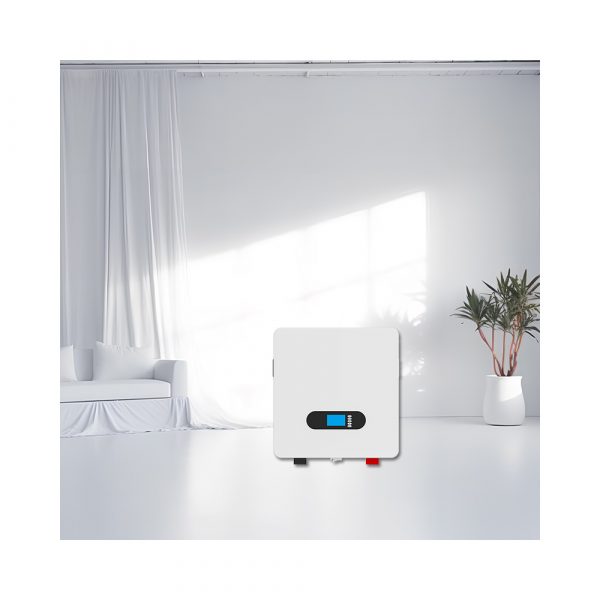

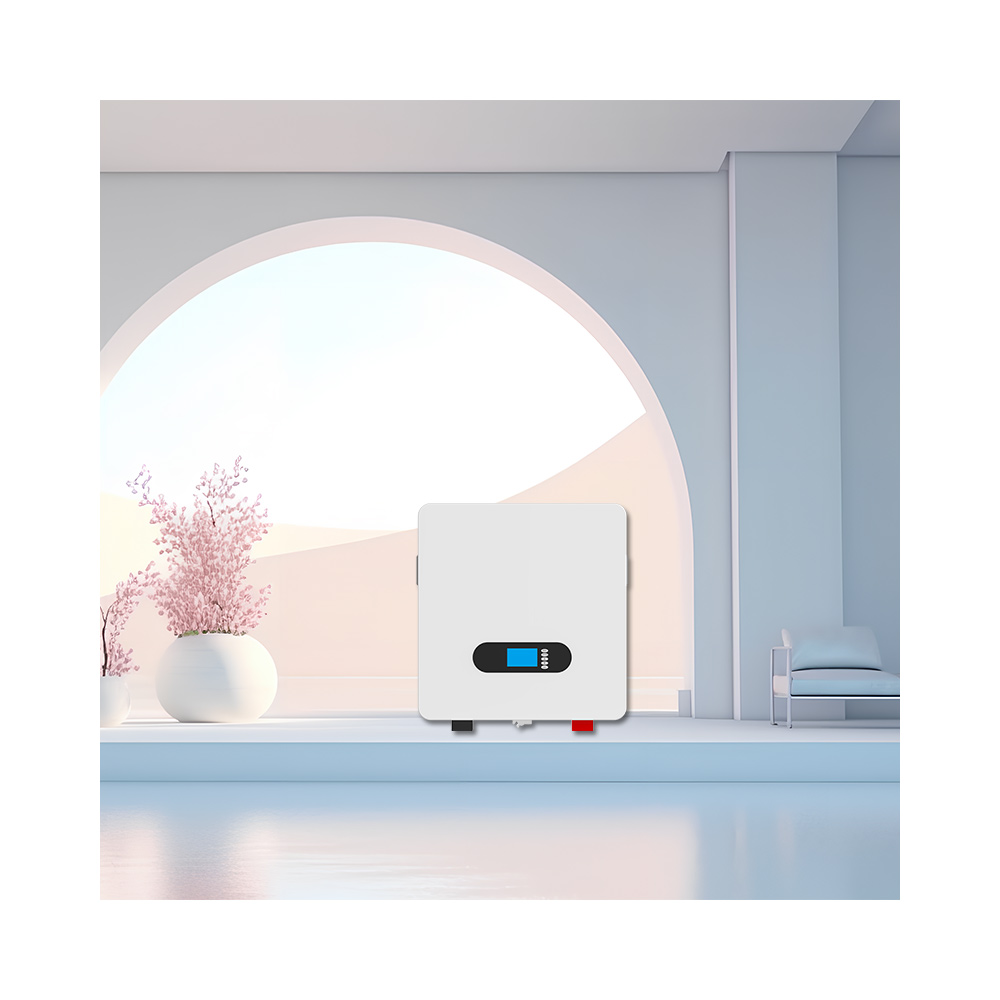

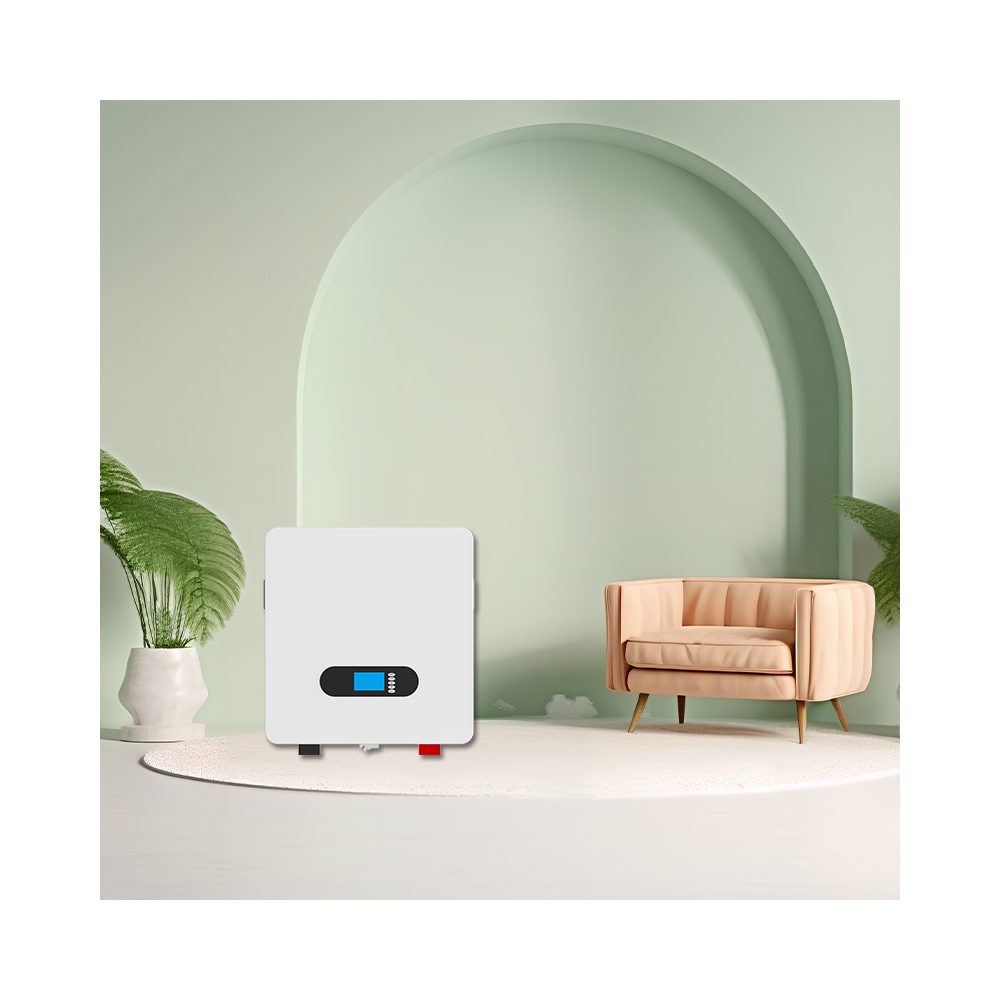

Wall-mounted lithium battery 5/10KWH for home solar energy storage system



Wall mount LiFePO4 Low-voltage lithium battery



• Compact Wall-Mount Design: Designed for easy installation on walls or in confined spaces, optimizing space utilization.
• LiFePO4 Chemistry: Utilizes the trusted Lithium Iron Phosphate (LiFePO4) chemistry, renowned for its safety, long life, and stable performance.
• Low Voltage: Operates at a lower voltage range compared to high-voltage batteries, making it suitable for low-voltage systems and smaller-scale applications.
• User-Friendly Installation: Provides a straightforward installation process, making it accessible to a wide range of users.
• Integrated Battery Management System (BMS): Equipped with a built-in BMS to ensure safety, monitoring, and cell balancing for reliable performance.
• Local Monitoring: Allows for easy on-site monitoring and control, ensuring quick access to battery status and diagnostics.
• Durability and Longevity: Built to withstand the test of time, offering a durable solution that reduces maintenance and replacement costs.
• Versatility: Suited for a variety of low-voltage applications, such as residential energy storage, backup power, and off-grid systems.
• Energy Efficiency: Maximizes energy storage and discharge efficiency, contributing to cost savings and sustainability.
• Warranty Coverage: Typically includes a comprehensive warranty, assuring users of the product’s reliability and performance.

parameter

Nominal Energy(KWh)	4 .8	9.6
Usable Energy(KWh)	4.32	8.64
Peak Output Power (KW, 3 Seconds)	7.68	9.6
Round-Trip Efficiency	≥97.5%
Nominal Voltage(V)	48V
Operating Voltage(V)	42-54.5
Max Charge/Discharge Current(A)	100/100
Communication	CAN, RS485
Enclosure Protection Rating	IP21
Operating Temperature (°C)	-20 – 60
Cooling Type	Natural Cooling
Installation	Wall Mounted, Indoor
Cycles Life	>6,000
Design Life	20+ Years (25℃@77℉)
Recommend DOD	90%
Dimension (W*H*D, mm)	480*500*240	530*630*240
Weight (Kg)	46	86
Humidity	5% – 95%
Altitude (m)	＜2,000
Warranty	5 Years
Safety Standard	UL1973/IEC62619/UN38.3
Scalability	Max 16 Pcs in Parallel



 compatible inverter list



featurers

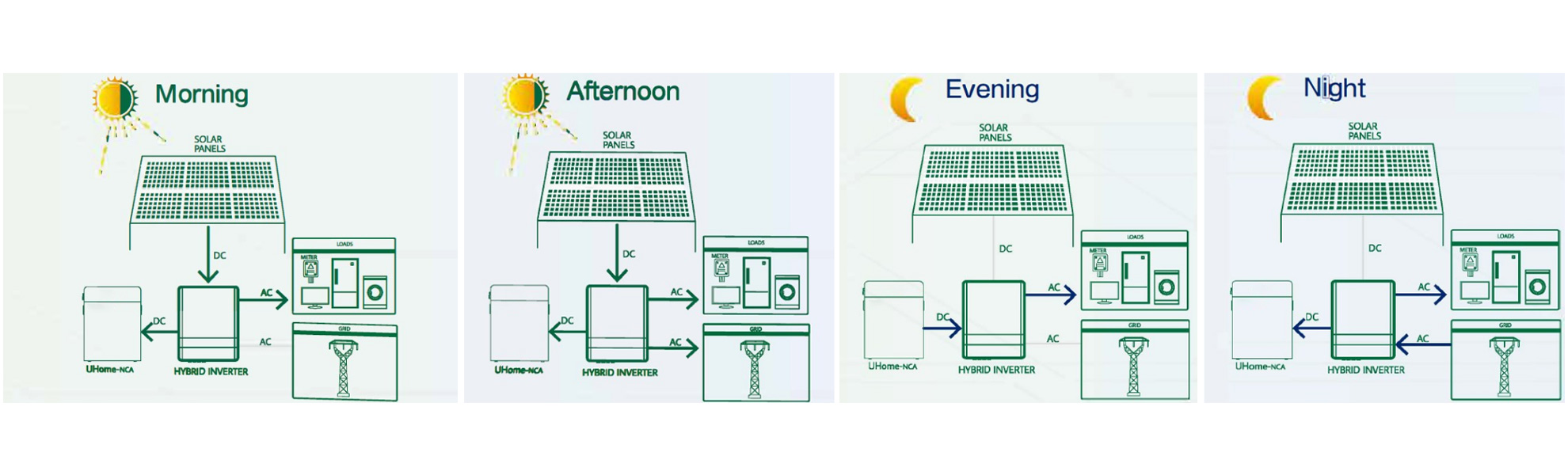

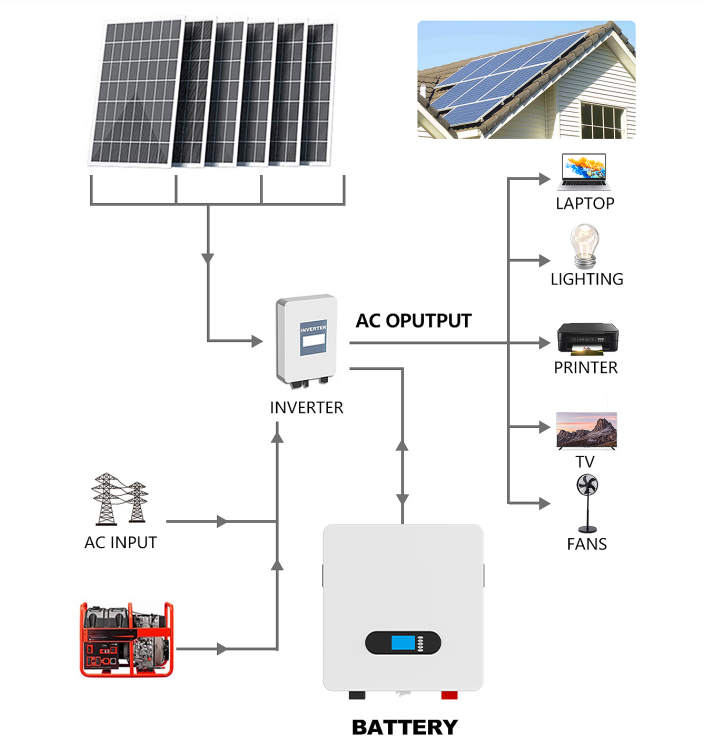

how solar battery works



Morning: The implementation of stackable home solar lithium batteries optimizes the utilization of self-generated solar energy, efficiently storing any surplus power produced by the photovoltaic (PV) system.

Afternoon: Once the batteries are fully charged and self-consumption needs are met, any excess energy seamlessly flows into the grid.

Evening: With the setting sun, the batteries seamlessly take over to power the AC load, ensuring a continuous and uninterrupted power supply.

Night: In cases where battery capacity falls short of self-consumption requirements, the system will automatically draw electricity from the grid to maintain a consistent power supply.

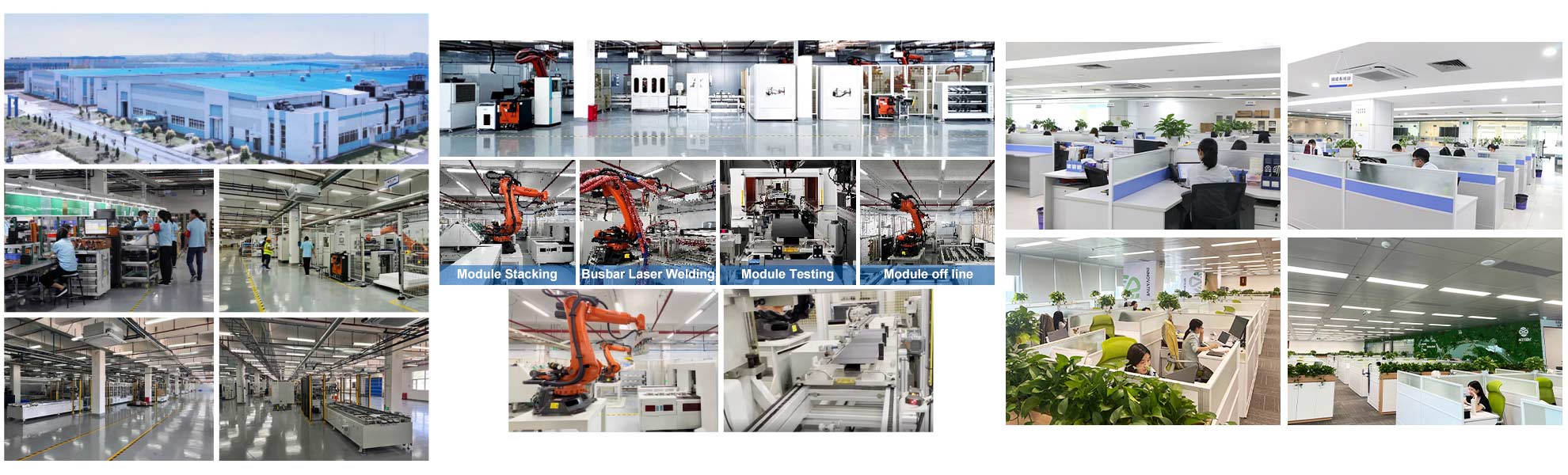

 factory tours



advantage



• Competitive Factory Pricing with a Commitment to High-Quality Standards.
• Profound Technical Expertise: We take pride in our team of engineers and our numerous national invention patents, appearance design patents, utility model patents, and software copyrights.
• Small Minimum Order Quantity (MOQ).
• Swift Delivery Capability: We continuously adapt our inventory levels to meet market demands, ensuring timely supply to fulfill market requirements.



certifications



FAQ



Q: Do you offer OEM and ODM services?

A: Yes, we provide both OEM and ODM services.

Q: How is your after-sales service?

A: We are committed to offering you timely and excellent after-sales support.

Q: What is the duration of the product warranty?

A: Our products come with a 10-year warranty.

Q: Is there a Minimum Order Quantity (MOQ)?

A: No, there is no minimum order requirement.
