Solar Lithium Ion Battery 6000 Cycle 48v Lifepo4 Battery 5KWH

Description

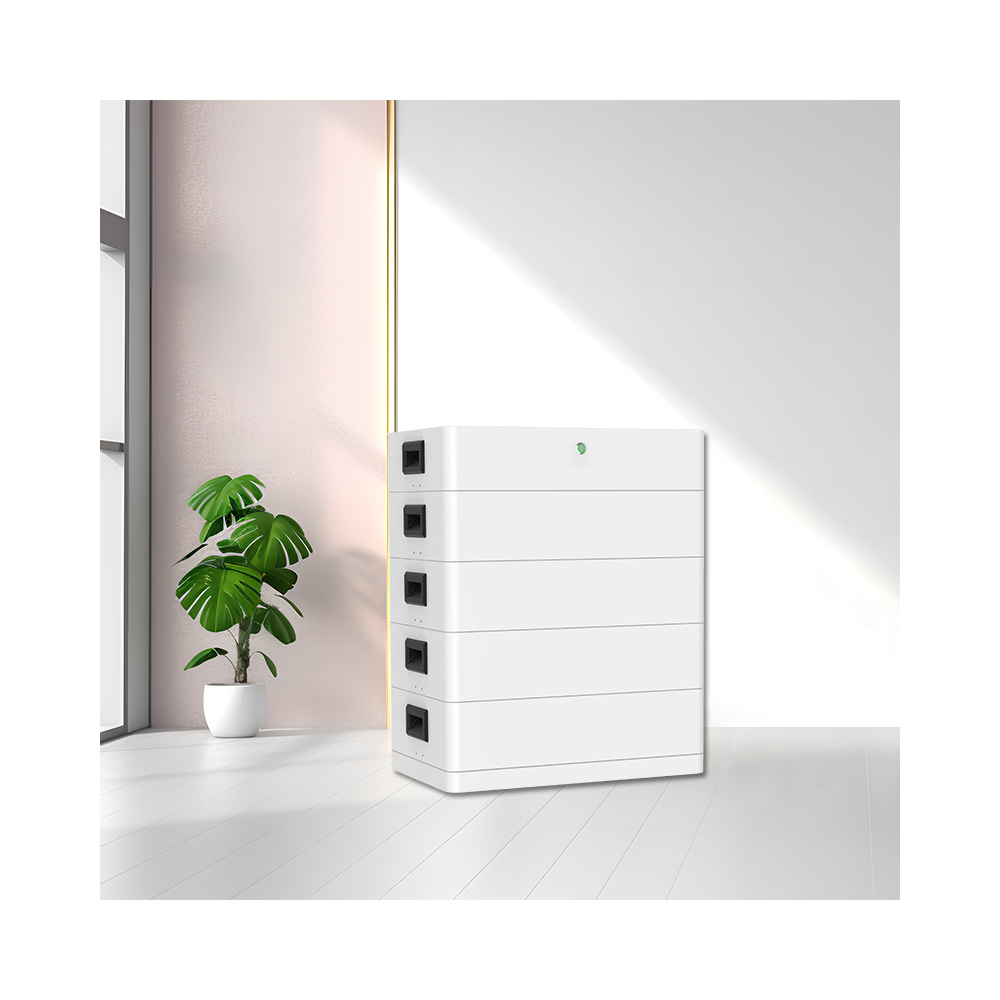

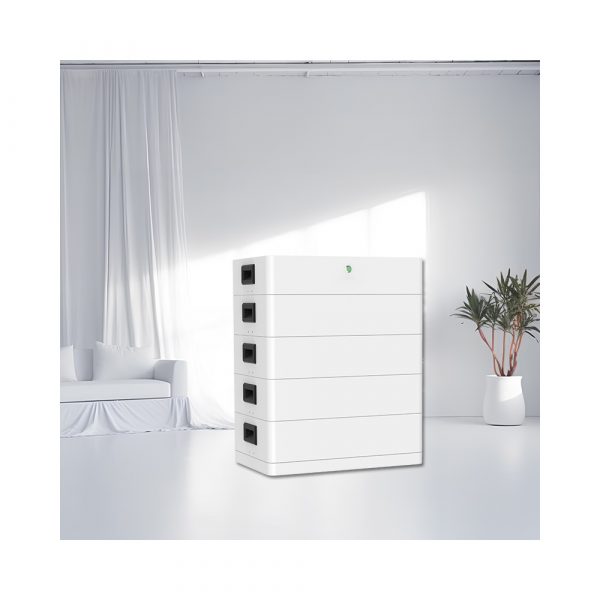

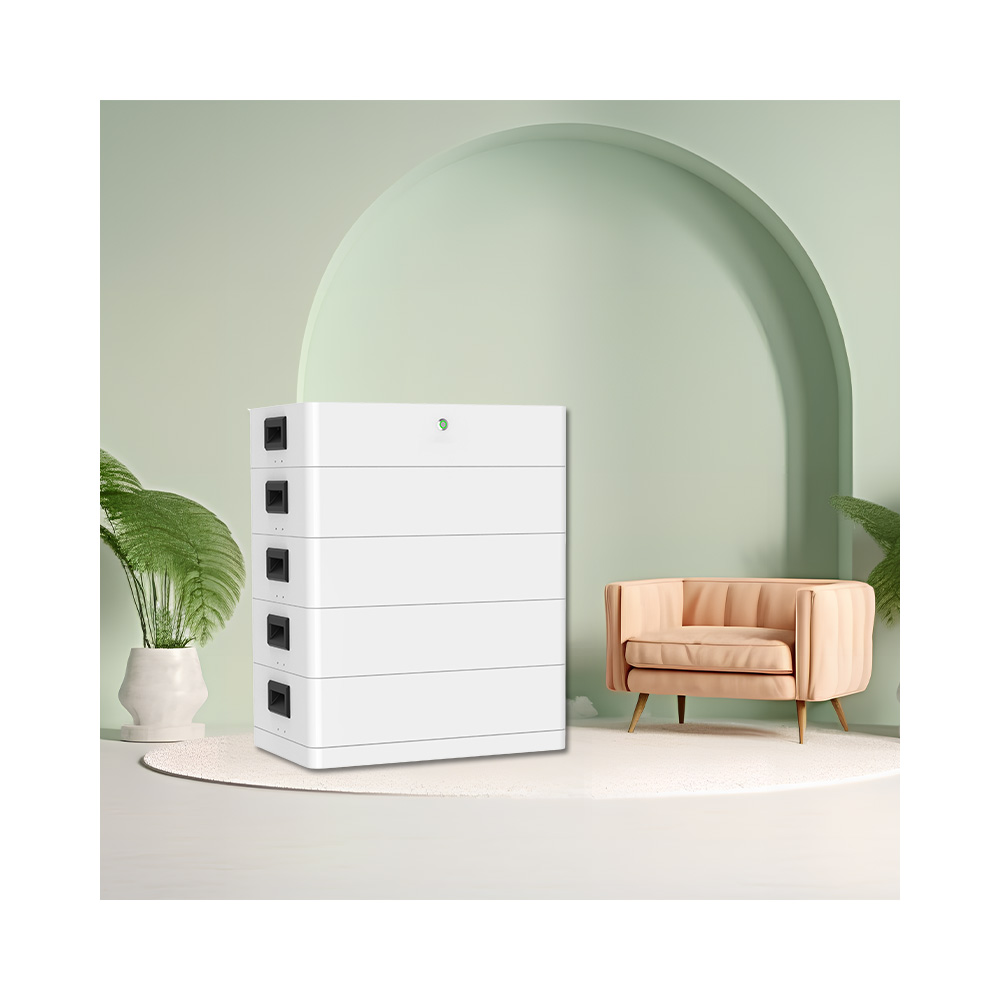

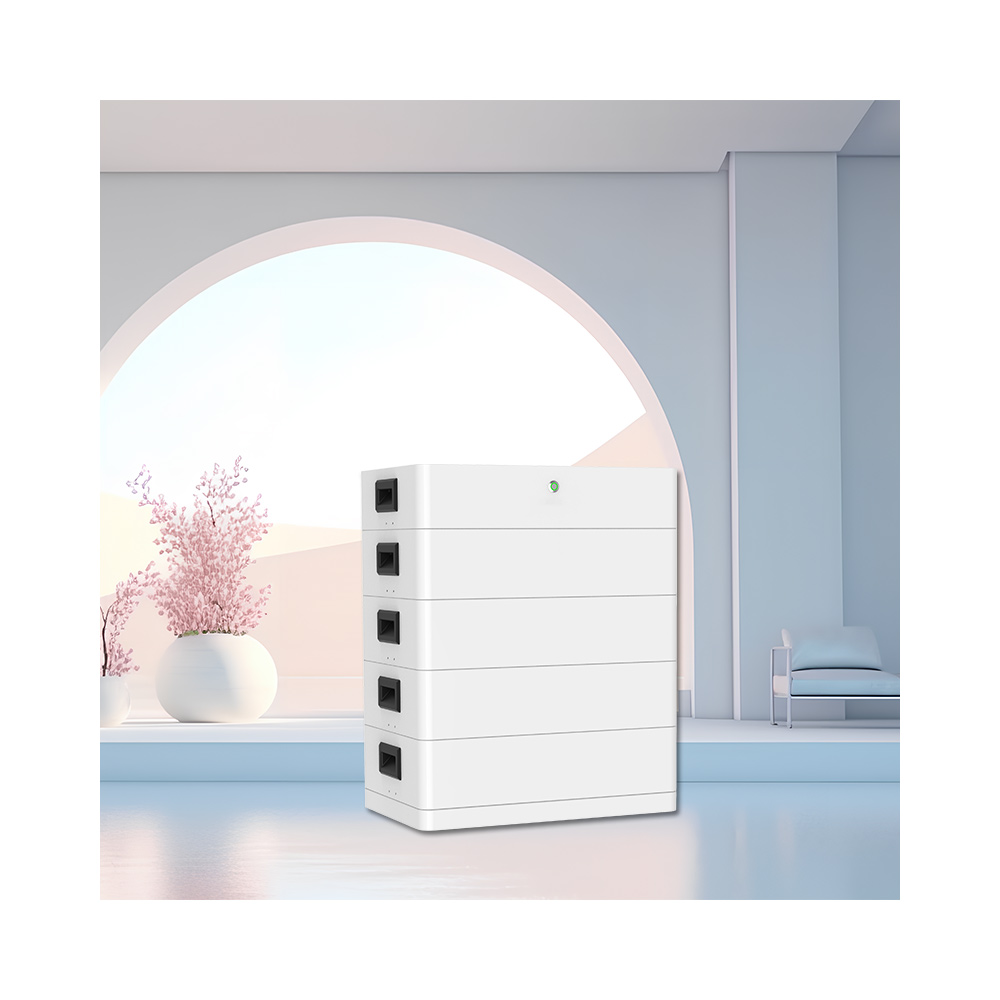

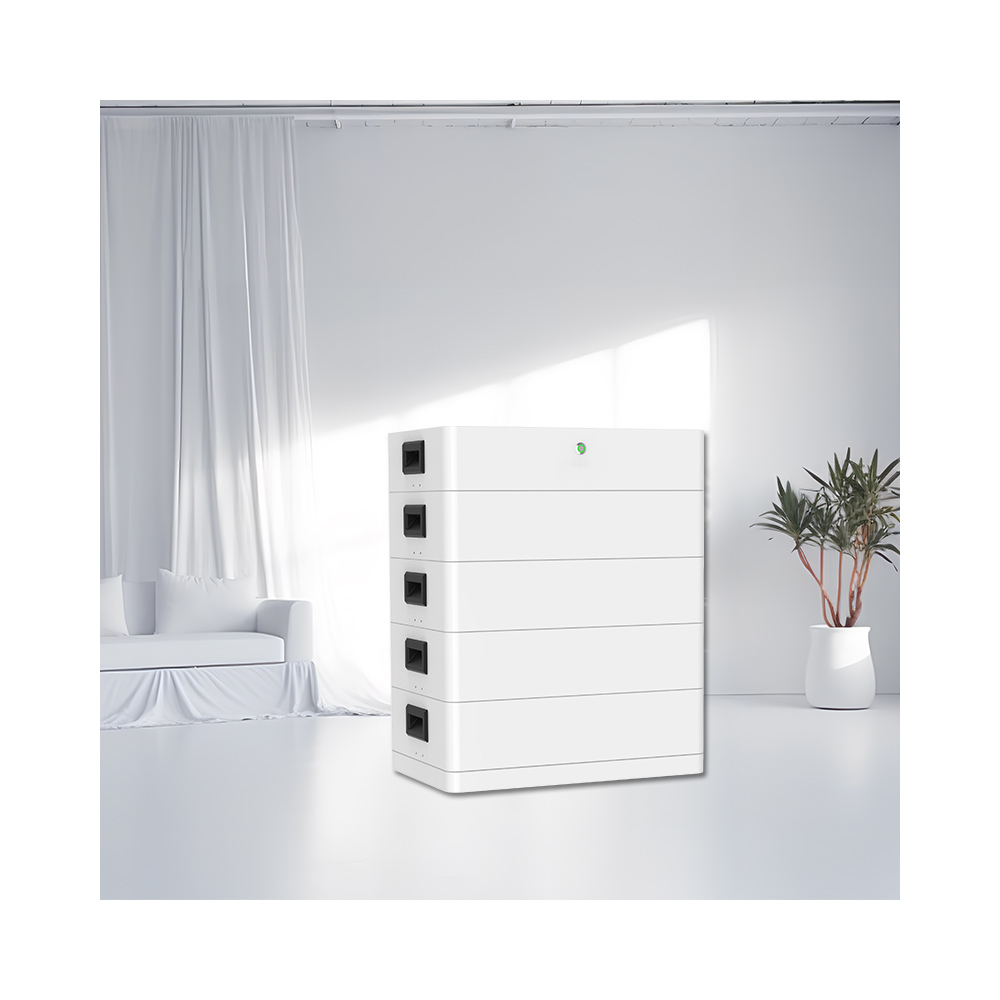

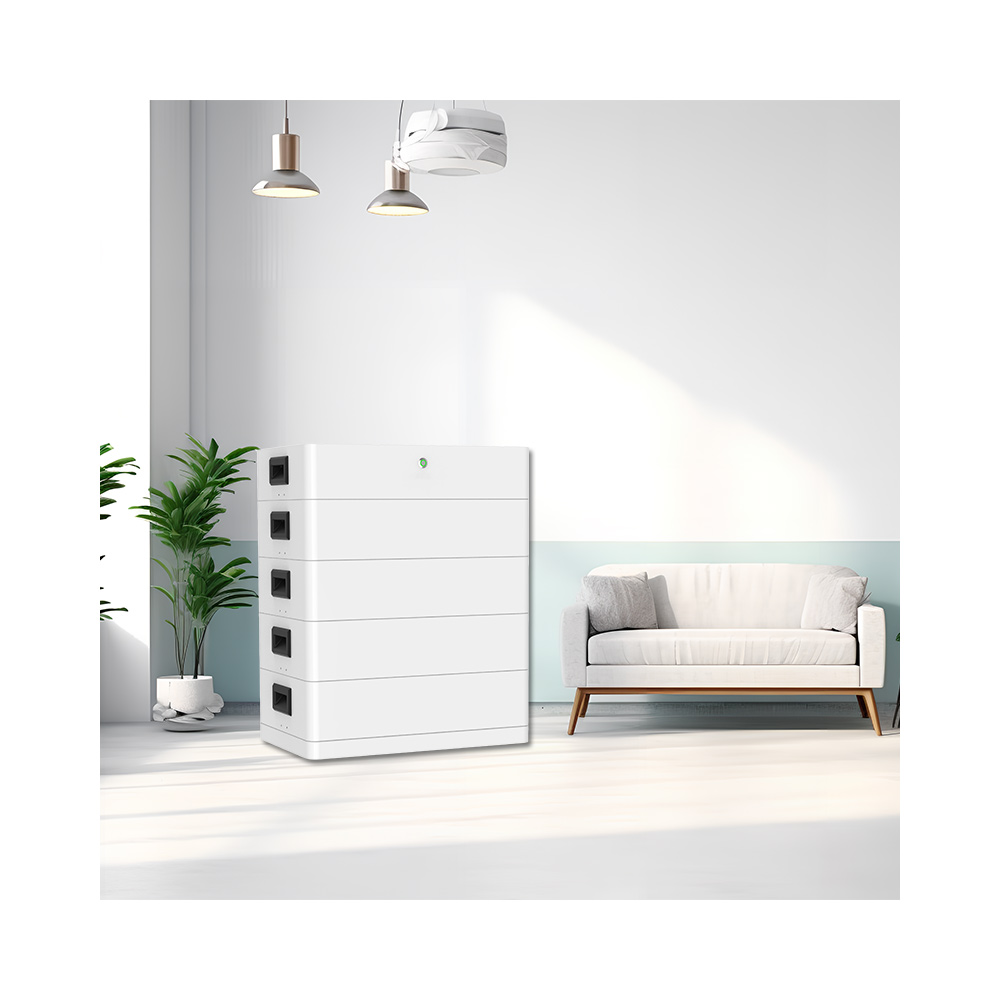

stackable lithium battery 5KWH for home solar energy storage system



stackable LiFePO4 Low-Voltage Lithium Battery



• Stackable Configuration: Designed for easy stacking of multiple units, allowing users to customize their power storage capacity to match specific requirements.
• LiFePO4 Chemistry: Incorporates the reliable Lithium Iron Phosphate (LiFePO4) chemistry, known for its safety, extended lifespan, and consistent performance.
• Low Voltage Operation: Operates at a lower voltage range, making it an ideal choice for low-voltage systems, including residential and smaller-scale applications.
• Modular Expandability: Offers flexibility through a modular design, enabling easy capacity expansion by adding or removing battery modules.
• Intelligent Battery Management: Equipped with a sophisticated Battery Management System (BMS) that ensures optimal performance, cell balancing, and protection against overcharging and over-discharging.
• Remote Monitoring Capabilities: Supports remote monitoring and control through integrated communication interfaces, allowing users to monitor the battery’s status and perform diagnostics from a distance.
• Extended Lifespan: Provides a long service life, reducing the need for frequent battery replacements and long-term operational costs.
• Versatile Applications: Suitable for a wide range of applications, from residential energy storage and backup power to off-grid systems and small commercial use.
• Energy Efficiency: Maximizes energy storage and discharge efficiency, contributing to sustainability and cost savings.
• Warranty Assurance: Typically includes a comprehensive warranty to ensure product reliability and customer satisfaction, offering peace of mind for users.



parameter



Nominal Energy (KWh)	5.12	10.24	15.36	20.48	25.60	30.72
Usable Energy (KWh)	4.61	9.22	13.82	18.43	23.04	27.65
Nominal Voltage (V)	51.2	51.2	51.2	51.2	51.2	51.2
Recommend Charge/Discharge Current (A)	50/50
Max Charge/Discharge Current (A)	100/100
Round-Trip Efficiency	≥97.5%
Communication	CAN, RJ45
Charge Temperature (℃)	0 – 50
Discharge Temperature (℃)	-20 – 60
Weight (Kg)	55	100	145	190	235	280
Dimension (W*H*D mm)	650*270*350	650*490*350	650*710*350	650*930*350	650*1150*350	650*1370*350
Module Number	1	2	3	4	5	6
Enclosure Protection Rating	IP54
Recommend DOD	90%
Cycles Life	≥6,000
Design Life	20+ Years (25°C@77°F)
Humidity	5% – 95%
Altitude(m)	<2,000
Installation	Stackable
Warranty	10 Years
Safety Standard	UL1973/IEC62619/UN38.3



 compatible inverter list



featurers

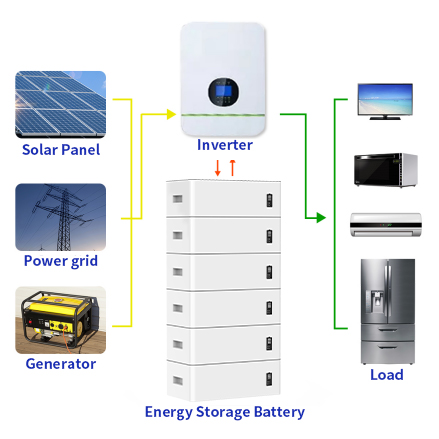

how solar battery work





Morning: Utilizing stackable home solar lithium batteries optimizes the self-consumption of solar energy, efficiently storing any surplus energy generated by the photovoltaic (PV) system.
Afternoon: Once the batteries are fully charged and self-consumption needs are met, any excess energy seamlessly flows into the grid.
Evening: At sunset, the batteries take over to power the AC load, ensuring a continuous and uninterrupted power supply.
Night: If the battery capacity falls short of self-consumption demands, the system automatically draws electricity from the grid to maintain a consistent power supply.

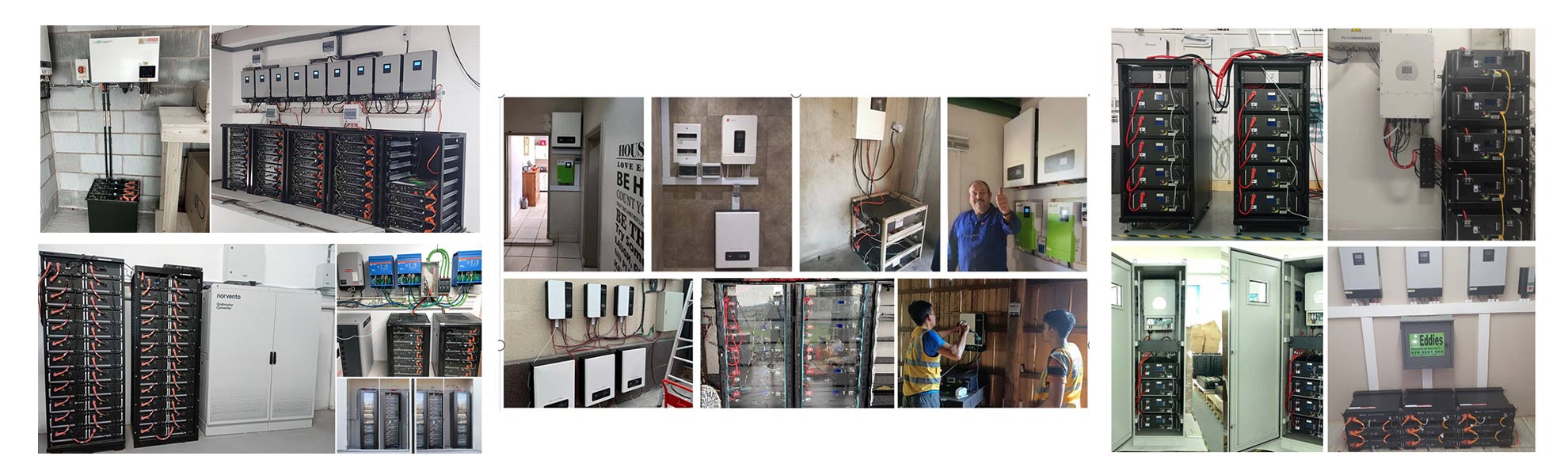

customers’ using examples

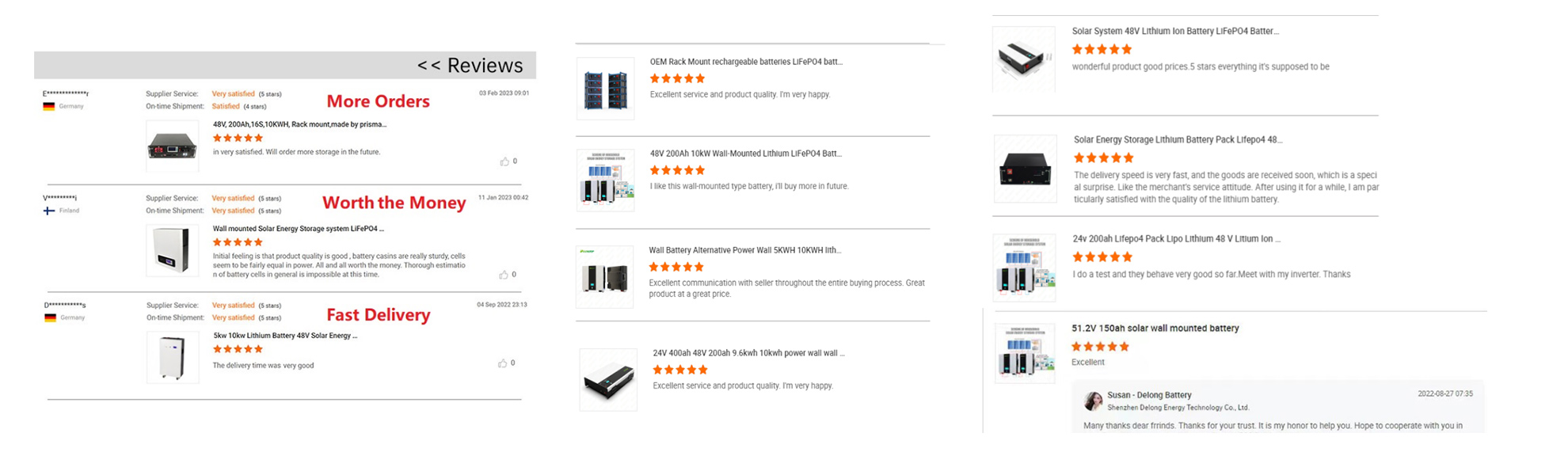

customers’ review

factory tours

our advantage



• Comprehensive Service System: Our well-organized pre-sales, sales, and after-sales service system provides customers with all-in-one solutions, aiding in inquiries, installation, technical guidance, and post-sales support.
• Rapid Delivery Capacity: We maintain agile inventory management, ensuring our stock aligns with market demands. This guarantees timely supply to meet market requirements.
• Profound Technical Proficiency: We take pride in our accomplished team of engineers who have achieved numerous national invention patents, design patents, utility model patents, and software copyrights, showcasing our strong technical expertise.



package

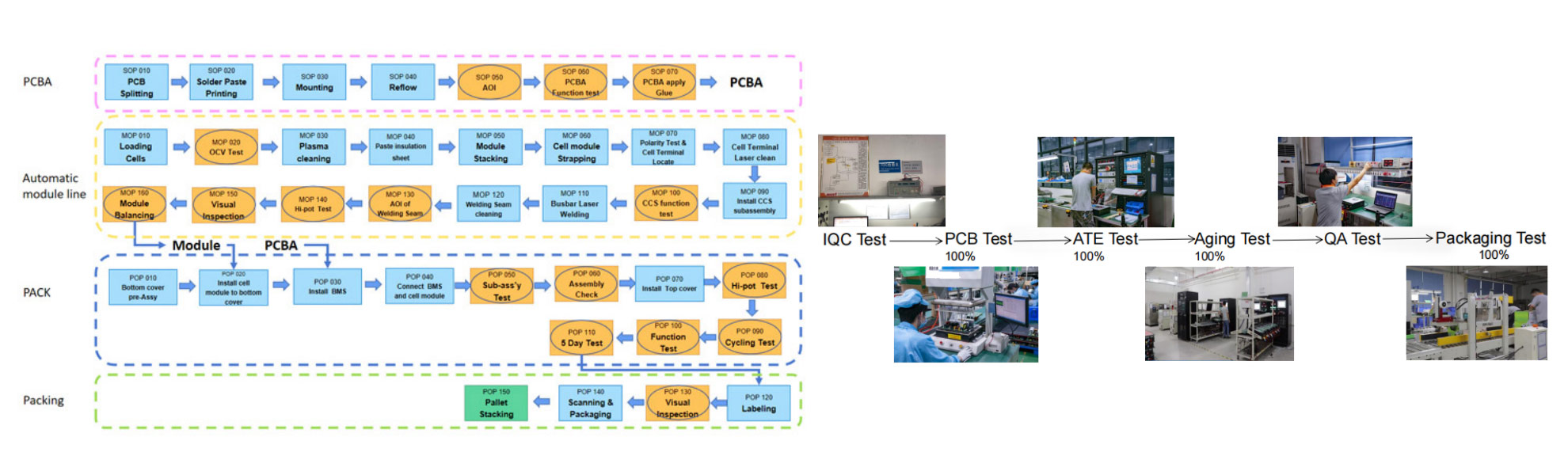

production and test process





FAQ

Q: Are you the manufacturer?
A: Yes, we are.

Q: Do you offer OEM and ODM services?
A: Yes, we do.

Q: What is the typical delivery time for your products?
A: For items in stock, delivery takes 1-3 days. For OEM/ODM orders, the lead time is 30-60 days.

Q: What is the duration of the product warranty?
A: Our products come with a 10-year warranty.

Q: Is there a Minimum Order Quantity (MOQ)?
A: No, there is no minimum order requirement.

Q: What products can I purchase from you?
A: We offer a range of products, including Solar Inverters, Lithium Batteries, and Solar Energy Storage Systems.

Q: How is your after-sale service?
A: We are committed to providing timely and excellent after-sale support.
